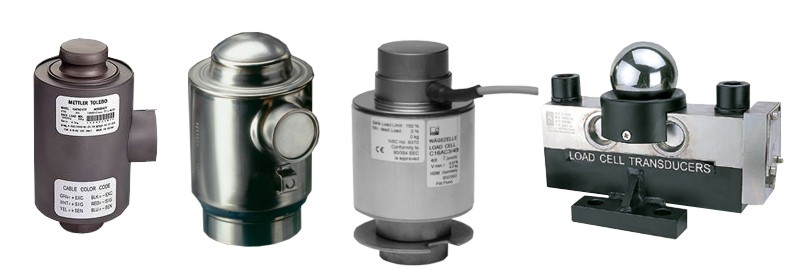

- Weighing Sensor
1. Overview:
SmartScale is a Multi-functional anti-cheating integrated measuring system. It consists of Measuring Management System, Video System, Traffic Control System, RFID Vehicle Number System etc. and is an ideal choice of enterprise measuring management.
2. Functional Features:
- Multiple techniques of anti-cheating to ensure safe measurement.
- Automatic record of abnormal operating event.
- Automatic alarm of vehicle weight out of tolerance.
- HD video and HD snapshot.
- Automatic voice guiding of vehicle weighing.
- 80 rights setting to make measuring management easy.
- Records of each operation make the measuring event can be traced back.
- Humanized interface design and easy operation.
- Flexible data query.
- Data transmission based on TCP/IP technology.
- Automatic fault diagnosis and remote recovery.
- One key installation.of the system.
- Data query by way of web.
- Openness and extensibility make more sets network operation.
- Easy configuration of peripherals using Plug/Play technology.
- Data realtimly into ERP system using built-in networking module.
3. Apply to:
Enterprise’s measuring management of truck scal and track scale.
Top
1. Overview
It controls the truck scale of single or double platform in single measuring site and can measure in unidirection or bidirection.
2. System Components:

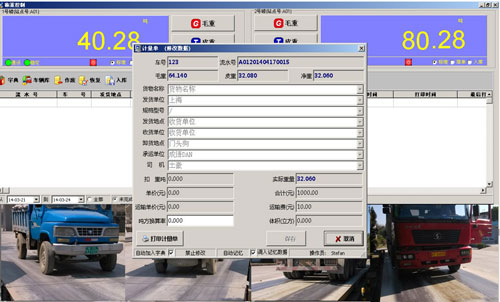

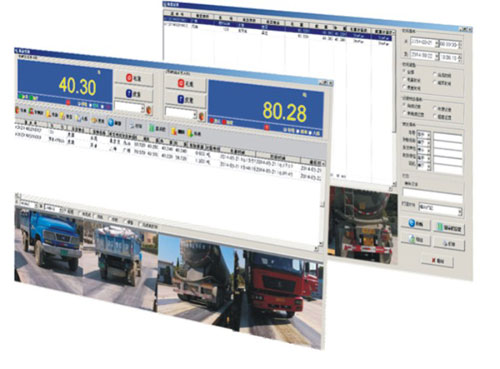

- Smartscale measuring control software.
- AVS cabinet.
- RFID electronic vehicle number system.
- Ground sensing detection system to the truck.
- Infrared occlusion detection system.
- Barrier Gate controller.
- Traffic light.

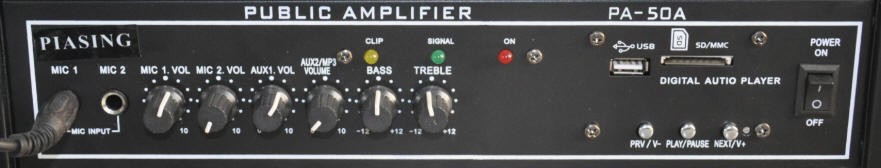

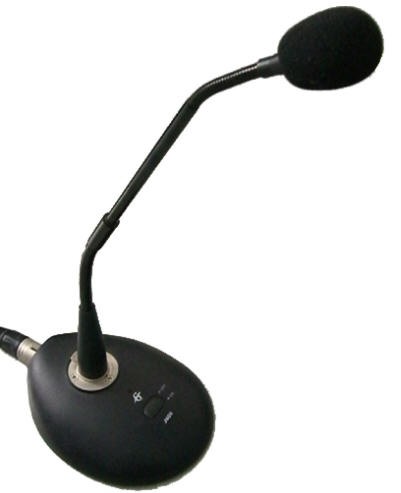

- Voice guiding system.

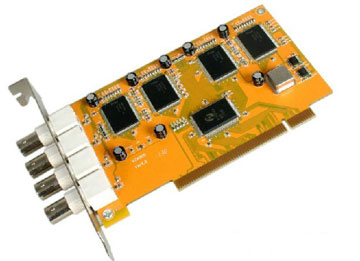

- Video and snapshot system.
- Module networking with ERP system.
- Lighting system.
- Both Chinese and English language version.
- Truck scale(existing or new).
- Data query by way of web.
3. Apply to:
small measuring system.
Top

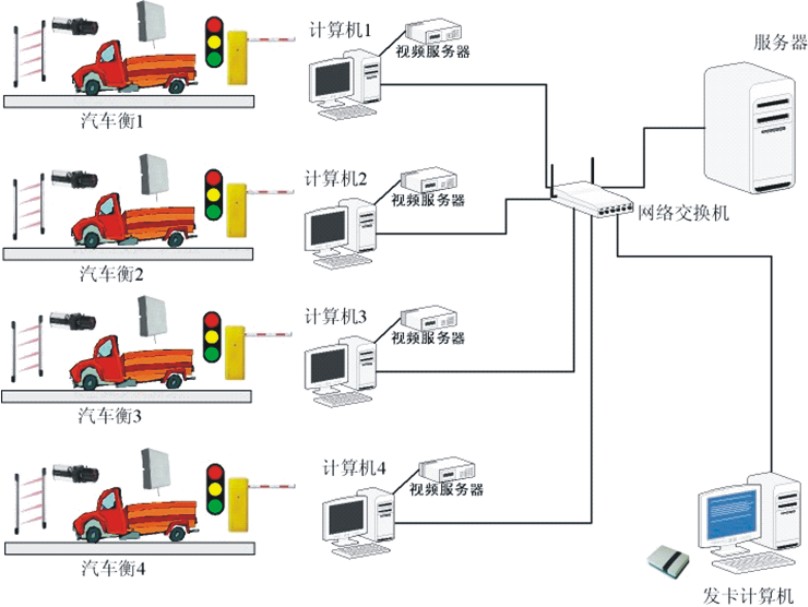

1. Overview
Several sets of the truck scale can be interconnect to run and can be concentratedly measured by remote.
2. System Components:
- Smartscale measuring control software (network edition).
- AVS cabinet.
- RFID electronic vehicle number system.
- Ground sensing detection system to the truck.
- Infrared occlusion detection system.
- Barrier Gate controller.
- Traffic light.
- Voice guiding system.
- Video and snapshot system
- Module networking with ERP system.
- Remote control of the lightning protection power supply.
- Both Chinese and English language version.
- Data query by way of web.
3. Apply to:
medium and large measuring system.
4. customization:
supported.
Top
(remote concentrated measurement edition)

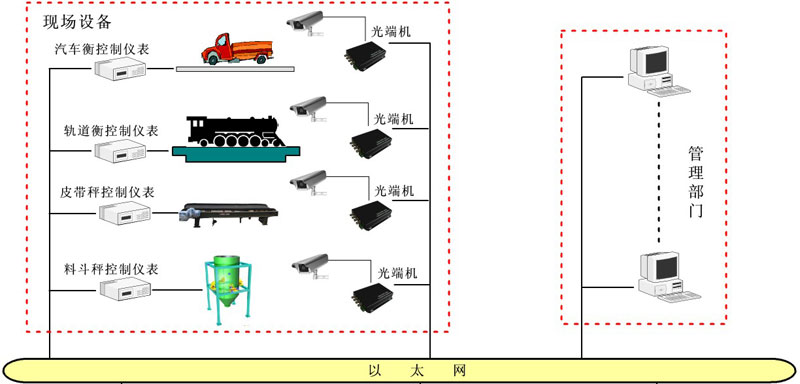

1. Overview

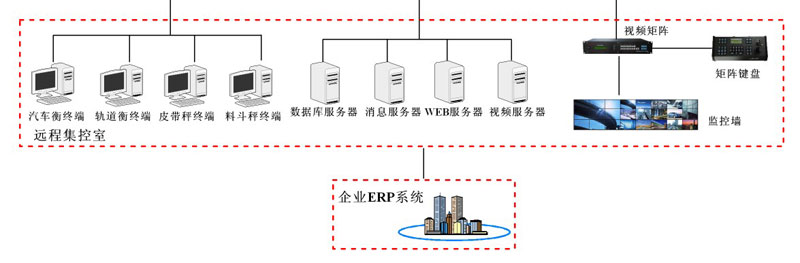

All of the measuring equipments can be concentratedly measured by way of interconnecting.
2. System Components:
- Smartscale measuring control software (network edition).
- AVS cabinet.
- RFID electronic vehicle number system.
- Ground sensing detection system to the truck.
- Infrared occlusion detection system.
- Barrier Gate controller.
- Traffic light.
- Remote voice guiding system.
- Video and snapshot system.
- Module networking with ERP system.
- Remote control of the lightning protection power supply.
- Truck scale/track scale/belt scale/hopper scale.
- Both Chinese and English language version.
- Data query by way of web.
3. Apply to:
medium and large measuring system.
4. customization:
supported.
Top
(Joint development with Science and Technology Research Institute of Shanghai Railway Bureau)
1. Overview

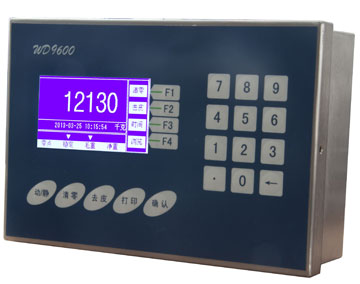

WD-9600 weighing display control instrument is a multi-functional weighing instrument exclusively developed in China. It built in module of dynamic and static measuring software, and independently complete the static and dynamic measuremnt of standard railway wagon. It is in a leading position in the industry.
2. Function Features:

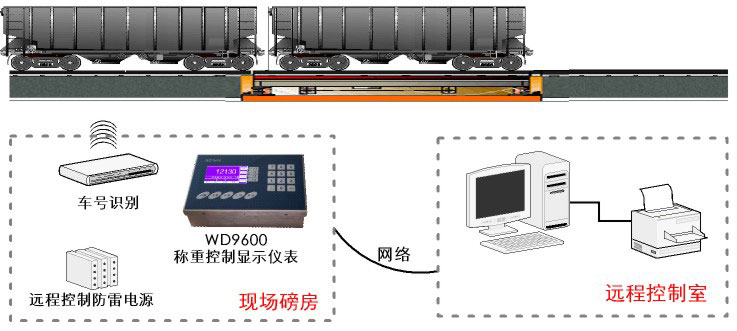

- Built-in dynamic and static measuring software, independently complete measurement.
- No switching dynamic vehicle identification technology.
- LCD display with Chinese graphic interface.
- 20 bit A/D convertor, the transformation rate of 100kps.
- Internl division: 1000000.
- Display division: 1000 – 6000 optional.
- Division value: 1kg- 50kg.
- he instrument directly connected to the Vehicle Number Identification System.
3. Apply to:
The 13m standard railway dynamic and static rail weighbridge, molten iron scale, mineral car scale, .standard dynamic rail weighbridge.
Top
(Joint development with Science and Technology Research Institute of Shanghai Railway Bureau)
1. Overview
Using WD-9600 weighing instrument in place of the original static instrument, It can realize dynamic and static measurement meanwhile the original structure of the rail weighbridge don’t be changed.
2. Function Features:
- Easy installation. Dynamic and static measurement can be realized with not changing the original structure.
- Simple calibration. The static calibration can be used in the dynamic calibration.
- The static measuring accuracy: 《JJG2002 – 781 static rail weighbridge verification regulations》.
- The dynamic measuring accuracy: 《JJG234 – 2012 dynamic rail weighbridge verification regulations》.
- Easy operation. LCD display with Chinese graphic interface.
- Self-diagnosis and simple maintenance. The fault code is displayed automatically,.
3. Apply to:
The existing or new 13m and 14m standard railway static rail weighbridge.
Top

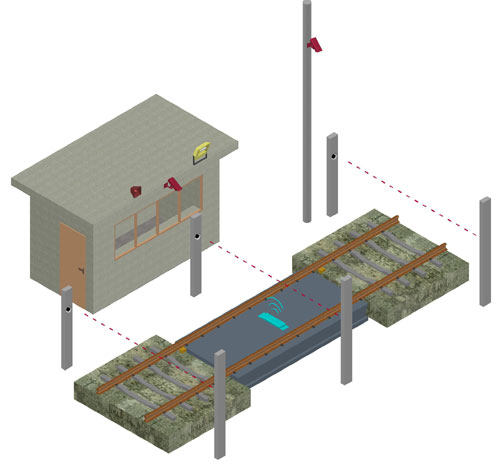

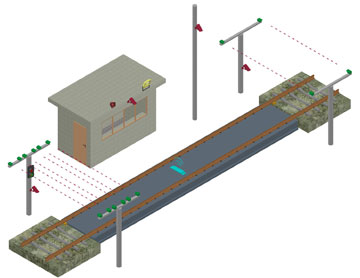

1. Overview
Without human intervention, it can automatically guide vehicle driving and position alignment, automatically collect weight and number, realtimely record the video and capture the picture. It overcomes the problems of the traditional artificial alignment and improves the measuring efficiency and the measuring accuracy
2. System Components:
- Automatic Measuring Control Software.
- Vehicle Number Identification System.
- Infrared Vehicle Separation Device.
- Traffic Light.
- Voice Guiding System.
- Video and Snapshot System.
- Module Networking with ERP
- Lighting System.
3. Apply to:
The railway static rail weighbridge of unattended measuring.
Top

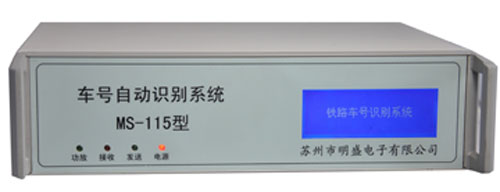

1. Overview
It can automatically collect car number and has the intelligent remdy for number. Even if a car’s tag of a train is damaged, it also can guarantee the other car number to be read accurately. It solves the problem of the car number matching confustion in the traditional car number identification system due to lost of the number.
2. System Components:
- Car Number Management Software.
- Car Number Identification System.
- Infrared Car Separation Device.
- Video and Snapshot System.
- Module Network with ERP
- Lighting System.
- Rail weighbridge Interface.
3. Apply to:
The dynamic rail weighbridge, railway freight yard.
Top
Technical Indicators:
- Maximum Weighing: 150T, safe overload: 150%.
- Weighing Object: standard four axle wagon
- Measuring Mode: bidirectional and dynamic carload or bogie measuring.
- Speed: 3 – 25km/h.
- Accuracy: compliance with the requirements of《JJG234–2012 dynamic rail weighbridge verification regulations》, the accuracy is better than grade 1.
- Structure Form: shallow foundation pit, single platform or double platform.
- Weighing Platform Length: 3.8m.
Top
Technical Indicators:
- Maximum Weighing: 150T, safe overload: 150%.
- Weighing Object: standard four axle wagon
- Measuring Mode: carload or bogie measuring.
- Speed: 3 – 20km/h.
- Static Accuracy: compliance with the requirements of《JJG2002–781 static rail weighbridge verification regulations》
- Dynamic Accuracy: compliance with the requirements of《JJG2002–781 static rail weighbridge verification regulations》, the accuracy is better than grade 1.
- Structure Form: shallow foundation pit, single platform or double platform.
- Weighing Platform Length: 13 - 15m.
Top
Technical Indicators:
- Maximum Weighing: 150T-800T, safe overload: 150%.
- Weighing Object: molten iron tank car.
- Measuring Mode: carload or bogie measuring.
- Speed: 3 – 15km/h.
- Static Accuracy: compliance with the requirements of《JJG2002–781 static rail weighbridge verification regulations》
- Dynamic Accuracy: compliance with the requirements of《JJG2002–781 static rail weighbridge verification regulations》, the accuracy is better than grade 1.
- Structure Form: shallow foundation pit, single platform or double platform.
- Weighing Platform Length: 7 - 15m.
Top
Technical Indicators:
- Maximum Weighing: 5T - 50T, safe overload: 150%.
- Weighing Object: mineral tank car of two axle or four axle.
- Measuring Mode: carload or bogie measuring.
- Speed: 3 – 15km/h.
- Static Accuracy: compliance with the requirements of《JJG2002–781 static rail weighbridge verification regulations》
- Dynamic Accuracy: compliance with the requirements of《JJG2002–781 static rail weighbridge verification regulations》, the accuracy is better than grade 1.
- Structure Form: shallow foundation pit, single platform or double platform.
- Weighing Platform Length: 1.5 – 5.8m.
Top

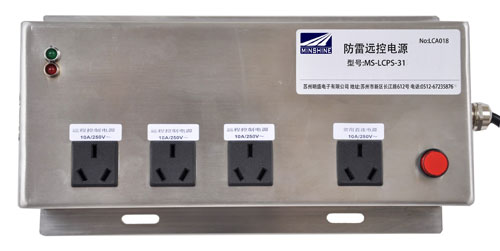

(patented product)
1. Overview
It has three levels of lightning protection and can be controlled by remote in command way. The control end can start or shutdown the power supply through commands.
2. Technical Parameters:
- Normal discharge current: 8/20us:20KA.
- Response Time: 20ns.
- Input Power: 220VAC.
- Four Way Output Power: one for direct output, three for controlled output.
- Output Current: 10A.
- Communication Mode: RS232/485/422(9600/8/n/1).
- Control Software: yes.
- Dimension: 270*145*80mm.
3. Apply to:
Power supply control for the remote site, remote power supply control of equipments.
Top
(China exclusive patented product )
1. Overview
Only using a communication port, It can control all of the peripherals of the remote measuring instruments, including weighing instrument, electronic vehicle number identification device, barrier gate controller, infrared vehicle seperation device, ground sensing device, traffic light etc.. It overcomes the shortcomings of many comminucation ports, complex cabling in the traditional weighing control system and is a ideal choice of the integrated measuring system.
This system built in the control program’s module, which has the several different control mode so that it can automatically control the barrier gate controller, collecting vehicle number and the other peripherals.
2. Technical Parameters:
- Host Interface: 1.
- Host Communication Mode: RS232/485/422, can bus/ethernet.
- Peripherals Interface: 5.
- Communication Mode: RS232/485/422.
- Switch Input: 10 way.
- Signal Output: 6 way.
- Output AC Power: 4 way: 220VAC/5A
1 way: 220VAC/20A.
- Output DC Power: 12V/5A.
Top

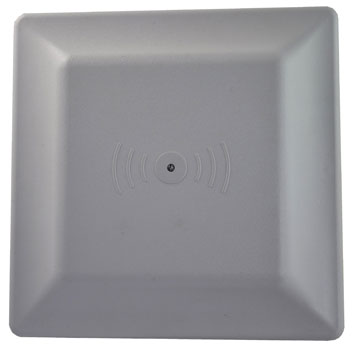

1. Overview
It consists of reading device and antenna, and can automatically recognize the number of each car of a train.
2. Technical Parameters:
- Working Frequency: 910.10/912.10/914.10MHz.
- Working Temperature: -30°C～+70°C.
- Output Power: 0.3～1.6W.
- Identification Distance: 0～6m.
- Adaptive Speed: 0～100km/h.
- External Antenna: 1 or 2.
- RF Cable Length: less than 3m
- Communication Mode: RS232/RS485/RJ45.
- Weight: 5kg.
- Power Supply: 12V DC/5A.
- Dimension: 482*400*88.9mm(L*W*H).
- Readout Tag: able accurately to read out the vehicle’s tags with the traditional AAR coding formats such as transcope, srt, xc, htk and the new M0 coding format
3. Apply to:
The dynamic and static rail weighbridges in the fields such as railway freight yard, electron, metallurgy, colliery, harbour, petrochemicals etc..
Top
1. Long Distance Vehicle Identification Device
- Model No.: MS-105Q.
- Frequency: 902-928MHz.
- Antenna Power: 2W.
- Communication Interface: RS232/485.
- Readout Distance: 8M.
- Working Voltage: DC7.5V - 12V.
- Working Temperature: -40°C ~ +65°C
Top

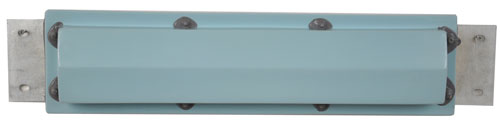

2. Close Distance Vehicle Identification Device
- Model No.: MS-201Q.
- Frequency: 902-928MHz.
- Antenna Power: 1W.
- Communication Interface: RS232.
- Readout Distance: 20CM.
- Working Voltage: DC7.5V - 12V.
- Working Temperature: -20°C ~ +65°C
Top
3. Infrared Detecting Device
- Model No.: MS-410H.
- Warning Distance: 10m.
- Working Voltage: DC7.5V - 12V..
- Working Current: 45mA.
- Working Temperature: -25°C ~ +50°C.
- Output Mode: wire(open/close).
- Trigger Time: 10ms
Top

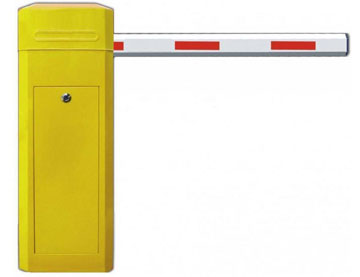

4. Barrier Gate Controller
- Model No.: MS-99L.
- Action Time: 0-6s.
- Working Voltage: AC 220V..
- Working Power: 60W.
- Working Temperature: -30°C ~ +50°C.
- Rail Length: 6m.
Top

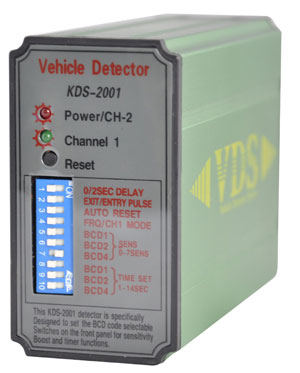

5. Ground Detecting Device
- Model No.: MS-21D.
- Detecting Mode: go through.
- Sensitiveness: 8 level, adjustable.
- Working Voltage: AC 220V..
- Working Temperature: -30°C ~ +60°C.
Top
6. Traffic Light
- Model No.: MS-20RG.
- Light Emitting Device: ultra brightness.
- Waterproof Grade: IP65.
- Working Voltage: AC 220V..
- Working Current: 350mA.
- Luminous Intensity: 320cd.
Top
7. HD Camera

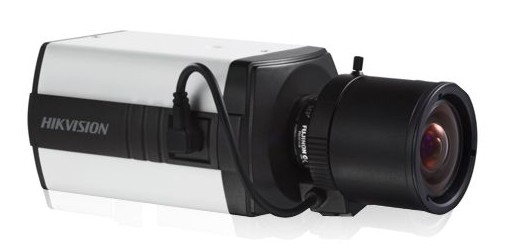

- Model No.: DS-2CCAP.
- Horizontal Resolution: 700TVL.
- Minimum illumination: color: 0.001Lux.
B/W: 0.0001Lux.
- Lens Interface Type: C/CS.
- Day and Night Mode: ICR infrared filter chip.
- Sensor Type: 1/3” SONY CCD
- Working Voltage: DC 12V..
- Power Consumption: 2W.
- Monitoring Distance: 20m.
Top

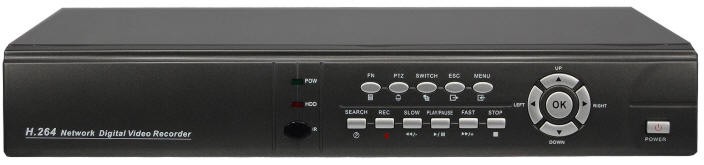

8. Video Server
- Model No.: DS-8400.
- Video Input: 4/8/16 way.
- Audio Output: 1 way.
- Harddisk Interface: Sata.
- External Interface: RJ45 10/100M, USB
- Power Supply: AC 220V..
- Power Consumption: 70W.
Top
9. Video Capture Card
- Model No.: VC4000.
- Compression Bit Rate: 64K – 2Mbps.
- Frame Rate: 1 – 30 frame/s, optional.
Top
10. Voice Horn
- Model No.: H508.
- Power: 30W.
- Resistance: 8Ω.
Top
11. Amplifier
- Model No.: PD-50.
- Output: 4-16Ω constant resistance, 70-100 constane voltage.
- Output Power: 50W.
- Working Voltage: DC 1.5*2V.
- Input: 2 way for audio, 2 way for microphone.
Top
12. Microphone
- Model No.: SM-88.
- Frequency Response Range: 60-12500Hz.
- Energy Transfer Mode: capacitive.
- Pickup Distance: 20~50cm.
- Working Voltage: DC 1.5*2V.
- Sensitiveness: 42dB±2dB.
Top
- Sensor: 1T-100T.
- Application Scope: rail weigbridge, truck scale.
Top
