Describe

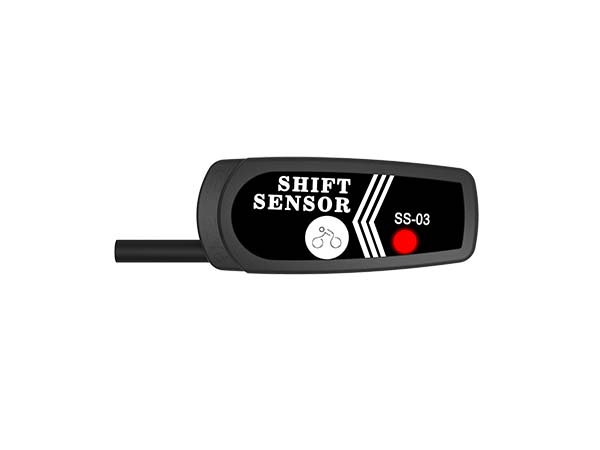

This inline gear-Shift Sensor is mounted on the gear shift cable and generates a signal during gear changes. Upon receiving this signal, the bicycle's control system executes the corresponding operation.
Widely used in mid-drive motor systems, this sensor features a compact design, easy installation, and high sensitivity.
Specification
Model | SS-01/SS-02/SS-03 |
Power | 5V/1mA |
Signal | Pulse (See Reference) |
Protection | Short Circuit &Polarity Reversed Protection |
Housing Material | Intensive ABS |
Size | 47 x 18 x 12mm |
Weight | 6.4g |

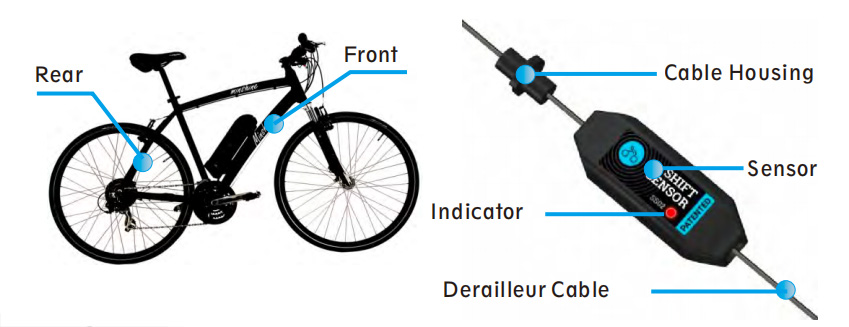

Installation Guide

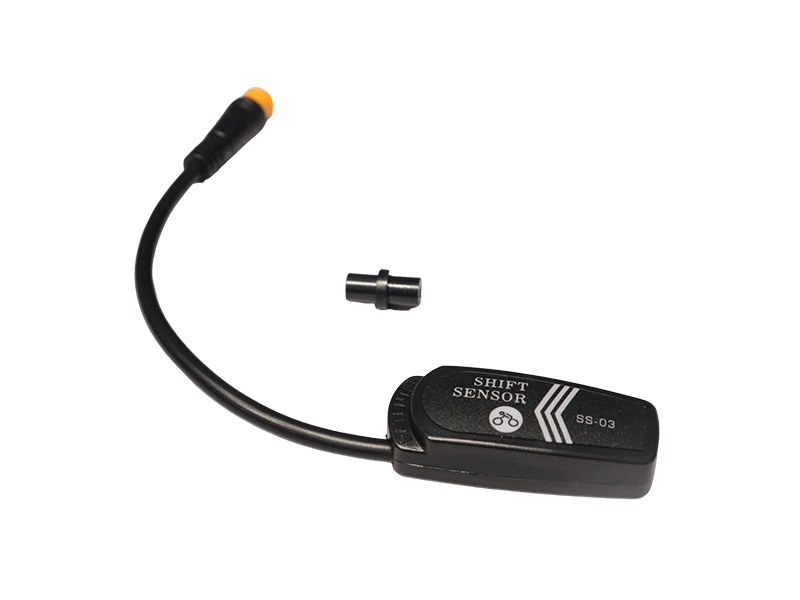

Interface
Connector: SM3 or other
Red: VCC
Black: GND
White: Signal
Indicator light:
Standby: Green or blue light flashing
Active: Red light on

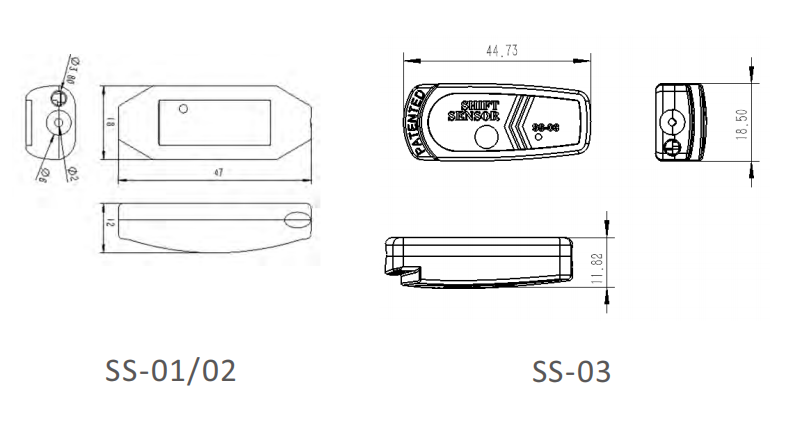

Appearance and Dimensions
Gear Shift Sensor SS-03 – Reliable Gear Position Detection for Modern Vehicles
I have worked with electronic sensing products for many years, and one thing has never changed: no matter how advanced a vehicle becomes, the control system is only as good as the signals it receives. A small sensor often determines whether the whole transmission system performs smoothly or creates unnecessary problems.
That is exactly why we developed the Gear Shift Sensor SS-03. It is designed to provide stable, fast, and accurate gear position detection for motorcycles, electric motorcycles, e-bikes, ATVs, UTVs, agricultural machinery, construction equipment, and many other industrial applications.
At Suzhou Minshine Electronics Co., Ltd., we have focused on controllers, displays, and sensors since 2003. Every product we manufacture reflects years of engineering experience and continuous improvement based on customer feedback from different industries around the world.
The Gear Shift Sensor SS-03 is an electronic sensing device that monitors the current gear position and sends accurate electrical signals to the vehicle control unit. Instead of relying on mechanical estimation, the controller receives real-time digital information, allowing the transmission system to respond quickly and accurately.
Whether installed on an electric motorcycle, traditional motorcycle, agricultural machine, or industrial transmission system, the sensor helps improve shifting accuracy while reducing signal delays.
Because modern vehicles rely more heavily on electronic control than ever before, gear position information has become an important part of vehicle safety, driving comfort, and power management.
Detect current transmission gear position
Provide stable electrical output
Improve ECU decision making
Reduce incorrect shifting signals
Support intelligent vehicle control systems
Enable smooth rider experience
People often ask me whether the Gear Shift Sensor SS-03 is a complicated device. Actually, its operating principle is straightforward.
Whenever the transmission changes gears, the mechanical movement inside the gearbox changes the position of the sensor. The internal sensing element immediately detects that movement and converts it into an electrical output signal.
The signal travels through the wiring harness directly to the electronic control unit (ECU), motor controller, dashboard, or other control modules. The controller instantly knows which gear has been selected and adjusts vehicle functions accordingly.
Because the entire process happens within milliseconds, drivers experience faster response, smoother acceleration, and more accurate display information.
| Component | Primary Function | Benefit |
|---|---|---|
| Sensing Element | Detect gear movement | High accuracy |
| Signal Processing Circuit | Convert movement into output signal | Stable electrical performance |
| Connector & Harness | Transmit signal | Reliable communication |
| Protective Housing | Environmental protection | Long service life |
Source: Internal Product Engineering Documentation, Suzhou Minshine Electronics Co., Ltd.
Some people assume every gear sensor performs the same job. From my experience, that isn't true.
Even a small signal delay may cause incorrect dashboard indication, delayed controller response, unnecessary motor output adjustments, or poor riding experience.
Modern electric vehicles especially depend on reliable electronic communication between every control component.
When the gear signal is accurate, the controller can optimize torque output, protect drivetrain components, improve riding comfort, and reduce unnecessary wear.
Improves shifting precision
Enhances vehicle control
Provides stable dashboard information
Supports intelligent control algorithms
Reduces mechanical stress
Improves overall driving safety
Supports efficient motor management
During product development, we focused on solving problems our customers experience every day rather than simply increasing specifications on paper.
That approach led us to design the Gear Shift Sensor SS-03 with practical industrial performance.
The sensor reacts immediately when gear movement occurs, allowing controllers to receive updated information almost instantly.
Stable internal sensing technology minimizes incorrect gear readings even during frequent shifting.
Motorcycles and industrial equipment generate continuous vibration. The SS-03 maintains stable performance under these demanding conditions.
Whether operating in cold outdoor environments or high-temperature industrial workshops, the sensor maintains dependable performance.
Durable materials and optimized internal construction help reduce maintenance requirements over extended operating periods.
The output signal remains consistent, helping control systems avoid unnecessary interruptions caused by electrical interference.
The following comparison highlights several practical differences commonly seen between the Gear Shift Sensor SS-03 and ordinary gear position sensors used in standard applications.
| Feature | Gear Shift Sensor SS-03 | Conventional Sensor |
|---|---|---|
| Signal Stability | Excellent | Standard |
| Response Speed | Very Fast | Moderate |
| Temperature Resistance | Wide Operating Range | Limited Range |
| Vibration Resistance | Industrial Grade | General Level |
| Customization Options | Extensive | Limited |
| Applicable Industries | Multiple Industries | Mostly Vehicle Applications |
Source: Internal Product Comparison Report and Global Automotive Sensor Market Overview.
One advantage of this product is its flexibility. Although originally developed for vehicle applications, many industrial customers have successfully integrated it into automated equipment and specialty machinery.
Electric bicycles
Electric motorcycles
Gasoline motorcycles
ATVs
UTVs
Agricultural machinery
Construction equipment
Industrial automation systems
Special purpose vehicles
Material handling equipment
I believe that product quality starts long before the final inspection. It begins with material selection, continues through every production step, and ends only after the product has passed multiple quality verification procedures. At Suzhou Minshine Electronics Co., Ltd., every Gear Shift Sensor SS-03 follows a standardized manufacturing process to ensure stable performance and long-term reliability.
Each production batch is manufactured according to confirmed engineering drawings, process documents, and quality control standards. From precision molding to electronic assembly, every procedure is carefully monitored by experienced technicians.
Incoming raw material inspection
Housing precision molding
Electronic component assembly
Sensor core installation
Automatic soldering and wiring
Signal calibration
Functional testing
Temperature and vibration simulation tests
Appearance inspection
Final packaging inspection
Every finished Gear Shift Sensor SS-03 is tested before shipment to make sure it performs consistently under practical operating conditions.
No two customers have exactly the same installation environment. One motorcycle manufacturer may require a different connector, while an agricultural machinery supplier may need a longer wiring harness or a unique mounting bracket.
That is why we provide flexible OEM and ODM customization services for the Gear Shift Sensor SS-03.
Our engineering team works directly with customers to optimize the sensor according to their equipment requirements without affecting product reliability.
Different mounting structures
Custom wire harness lengths
Various connector types
Multiple output signal options
Customer-specific cable colors
Laser marking
Private label service
OEM logo printing
Custom packaging solutions
This flexibility allows our customers to reduce installation time while improving compatibility with existing equipment.
Over the years, I have seen the Gear Shift Sensor SS-03 used in many different industries. Although every application is different, customers are usually looking for the same thing: reliable gear position detection that performs consistently under demanding conditions.
| Industry | Main Application | Typical Benefits |
|---|---|---|
| Electric Bicycle | Gear Position Monitoring | Smooth riding experience |
| Electric Motorcycle | Transmission Control | Fast ECU response |
| Motorcycle | Dashboard Gear Display | Stable shifting information |
| ATV / UTV | Gear Detection | Reliable operation on rough terrain |
| Agricultural Machinery | Transmission Monitoring | Improved equipment reliability |
| Construction Equipment | Gear Signal Output | High vibration resistance |
| Industrial Automation | Mechanical Position Detection | Stable industrial control |
Source: Global Off-Highway Vehicle Electronics Market Report, Industrial Automation Industry Research, Internal Customer Application Statistics.
One lesson I've learned over the years is that customers don't simply buy a sensor—they buy confidence. They want every unit to perform exactly the same way, whether they order one piece or ten thousand.
To achieve that consistency, every Gear Shift Sensor SS-03 undergoes multiple inspections before shipment.
Electrical performance testing
Output signal verification
Connector inspection
Visual appearance inspection
Temperature resistance verification
Vibration simulation testing
Reliability sampling inspection
Packaging verification
Only products that pass every inspection step are approved for shipment.
We understand that stable delivery is just as important as product quality. Delayed components often delay an entire production line, so we work hard to keep manufacturing schedules predictable.
Standard Gear Shift Sensor SS-03 models are generally produced within 7–15 working days. Custom products are arranged according to engineering requirements, production planning, and order quantity.
| Item | Details |
|---|---|
| Production Lead Time | 7–15 Working Days |
| Payment Methods | T/T, Wire Transfer |
| Negotiable Terms | Available for Long-term Partners |
| Shipping Methods | Express, Air, Sea, Rail |
| Packaging | Anti-static Bag + Cushioning Material + Export Carton |
| Custom Packaging | Available |
Every package is designed to minimize vibration, moisture, and impact during international transportation, ensuring the sensor arrives in excellent condition.
Since 2003, we have specialized in controllers, displays, and sensors for industrial and vehicle applications. Throughout these years, we have worked with customers from different countries and industries, continuously improving our products based on real-world feedback.
When customers choose us, they are not simply purchasing a component. They are working with a manufacturer that understands production, quality management, and long-term cooperation.
Over 20 years of manufacturing experience
Professional engineering support
Flexible OEM and ODM services
Strict quality management system
Stable production capacity
Fast technical communication
Reliable international delivery
Competitive manufacturing costs
Long-term cooperation philosophy
It is suitable for electric bicycles, electric motorcycles, motorcycles, ATVs, UTVs, agricultural machinery, construction equipment, and many industrial control systems.
Yes. We provide customized connectors, wire harness lengths, mounting methods, and output configurations.
Every product undergoes functional testing, electrical verification, appearance inspection, and reliability testing before shipment.
Standard products usually require 7–15 working days. Customized projects depend on specifications and order quantity.
We support international express, air freight, sea freight, and railway transportation.
Yes. We offer OEM and ODM manufacturing for customers worldwide.
Yes. Custom labels, packaging, and branding can be arranged according to customer requirements.
Simply send us your product specifications, drawings, or technical requirements. Our engineering and sales teams will provide a suitable solution together with pricing and delivery information.
From my perspective, the Gear Shift Sensor SS-03 is more than just a gear detection device. It is a critical part of the communication system between mechanical components and electronic controllers. Stable signals lead to smoother shifting, more reliable vehicle operation, and improved overall system performance.
At Suzhou Minshine Electronics Co., Ltd., we continue to improve our products through practical engineering experience, strict quality control, and close cooperation with customers around the world. Whether you need a standard Gear Shift Sensor SS-03 or a fully customized solution, we are ready to support your project with reliable products, responsive service, and dependable manufacturing.
