Product Description

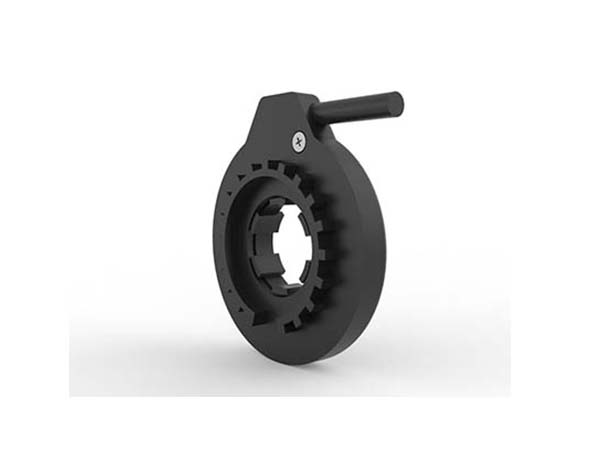

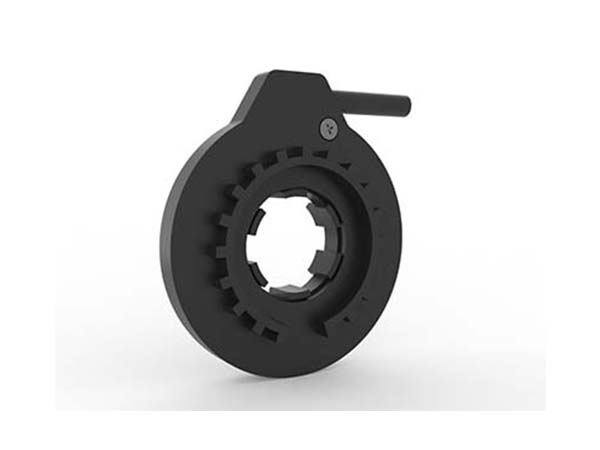

This is a state-of-the-art high-precision PAS sensor. As an integrated sensor, it can be mounted on the left or right side of the bottom bracket.
This sensor features automatic motion direction detection, enabling it to monitor the direction of movement in real time during cycling and pedaling: it sends a signal when moving in the forward direction and stops sending a signal when moving in the reverse direction.
Specification
Model | PAS24L/R |
Power | 5V/2m |
Signal | Forward-24Pules Per Circl |
Reverse -None | |
Indicator | Red Light |
Material | PC |
Wegiht | 7.8g |
Axel Size | 15-15.8mm |

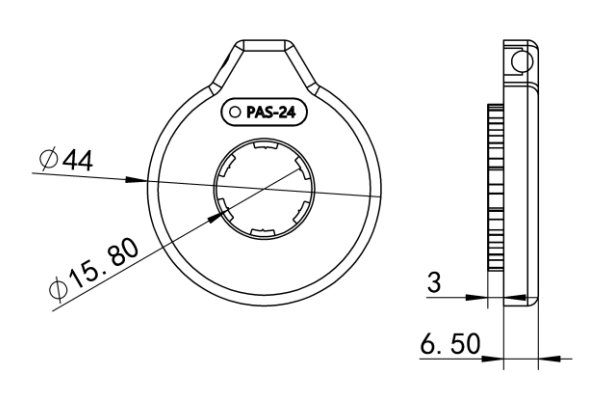

Shape and size

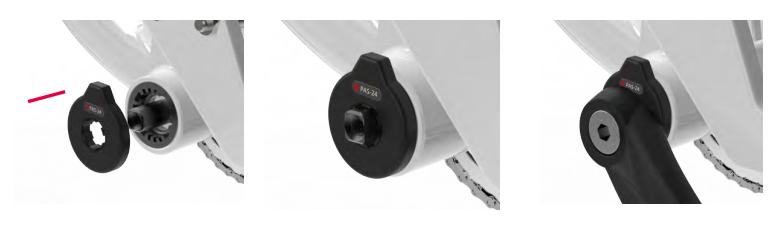

Installation Guide
Packing list
Sensor x1
Interface
Connector: SM3 or other type
Red: VCC
Black: GND
White: Signal
Indicator Light
Standby: Solid red light
Forward: Flashing red light
Backward: Off
How to order
The following items must be specified before placing an order:
--Model and quantity
--Installation location
(Left: PAS-12L; Right: PAS-12R)
--Connector type
--3-pin arrangement
--Cable length
--Other special requirements
PAS-24L/R Foot Pedal Sensor – Dual-Side Industrial Control Solution for Flexible Operation
I’ve been working in industrial control systems at Suzhou Minshine Electronics Co., Ltd. for years, and the PAS-24L/R Foot Pedal Sensor is one of those designs that solves a very practical problem in factories: operators need flexible control options without slowing down production.
In many production environments, one foot position is not always convenient. That’s why a left/right dual pedal design matters—it gives operators more freedom, better ergonomics, and smoother workflow control.
The PAS-24L/R Foot Pedal Sensor is an industrial dual-side foot switch system designed for machine control. It allows operators to use either the left or right pedal depending on working position and comfort.
It is widely used in CNC equipment, welding systems, and automation production lines where flexible and fast control is needed.
Dual left/right industrial foot control design
Stable electrical signal output system
Suitable for automation and CNC machines
High-frequency industrial usage support
The PAS-24L/R works through mechanical pressure activation. When the operator steps on either the left or right pedal, the internal switch system closes and sends a signal to the controller.
This signal triggers machine actions such as start, stop, or cycle control. The system is simple, fast, and reliable for industrial environments.
| Component | Function | Benefit |
|---|---|---|
| Left/Right Pedal Unit | User input control | Flexible operation choice |
| Switch Mechanism | Signal generation | Fast response output |
| Output Interface | Signal transmission | Stable machine integration |
Source: Internal Industrial Control Engineering Report, Suzhou Minshine Electronics Co., Ltd. (2025)
When designing PAS-24L/R, we focused on real factory usage where operators often switch positions or work in limited space.
Dual-side left/right operation flexibility
High durability for industrial environments
Fast and stable switching response
Strong anti-interference design
Ergonomic structure for long-term use
In production lines, flexibility often improves efficiency more than raw speed alone.
Here is a simple comparison between PAS-24L/R and traditional single-foot switch systems.
| Feature | PAS-24L/R Dual Foot Sensor | Standard Single Foot Switch |
|---|---|---|
| Operation Flexibility | Left / Right selectable | Single position only |
| Ergonomics | High comfort design | Basic structure |
| Response Speed | Fast and stable | Moderate |
| Application Range | CNC, automation, welding | Light industrial use |
Source: Industrial Foot Control System Benchmark Report 2024 (Asia Manufacturing Study)
The PAS-24L/R Foot Pedal Sensor is widely used in industries that require flexible, hands-free machine control.
CNC machining systems
Welding and fabrication equipment
Automated production lines
Packaging machinery
Industrial assembly systems
| Industry | Application | Importance Level |
|---|---|---|
| Welding Systems | Trigger control operation | High |
| CNC Machines | Cycle start/stop control | High |
| Automation Lines | Process activation control | Medium-High |
Source: Global Industrial Control Equipment Market Report 2024
Every PAS-24L/R unit goes through strict production steps. We treat it as an important industrial control component.
The process includes housing assembly, switch calibration, electrical testing, durability cycling, and final inspection.
Material inspection before production
Dual pedal mechanical assembly
Electrical switching calibration
High-cycle durability testing
Final quality verification
We maintain stable global delivery for industrial customers. The production cycle for PAS-24L/R is generally 7–20 days depending on order requirements.
| Item | Standard Practice |
|---|---|
| Production Time | 7–20 days |
| Payment Terms | Prepayment / contract-based / staged payment |
| Shipping Methods | Express / logistics line / air freight |
| Packaging | Anti-static bag + foam + reinforced carton |
Because this product is used in industrial environments, we ensure reinforced packaging for safe long-distance transportation.
From my experience, customers choose dual foot pedal systems when they need flexibility and efficiency in tight working environments.
We have been focusing on industrial electronics since 2003, and PAS-24L/R is designed for real production line demands.
20+ years manufacturing experience
Stable production capacity
Support for customization
Strict quality control system
Q1: Can both pedals be used independently?
Yes, left and right pedals work independently.
Q2: Is it suitable for CNC machines?
Yes, it is widely used in CNC systems.
Q3: Can it be customized?
Yes, customization is supported based on requirements.
Q4: Is it durable for industrial use?
Yes, it is designed for long-term industrial operation.
The PAS-24L/R Foot Pedal Sensor is a flexible and reliable industrial control solution that improves efficiency, comfort, and operational freedom in modern production environments.
