Describe
This derailleur sensor is mounted on the derailleur cable and generates a signal during gear shifting. Upon receiving this signal, the bicycle's control system can then take appropriate action.
This sensor is widely used in mid-drive motor systems; it is compact, easy to install, and highly sensitive.
Specification
Model | SS-01/SS-02/SS-03 |
Power | 5V/1mA |
Signal | Pulse (See Reference) |
Protection | Short Circuit &Polarity Reversed Protection |
Housing Material | Intensive ABS |
Size | 47 x 18 x 12mm |
Weight | 6.4g |

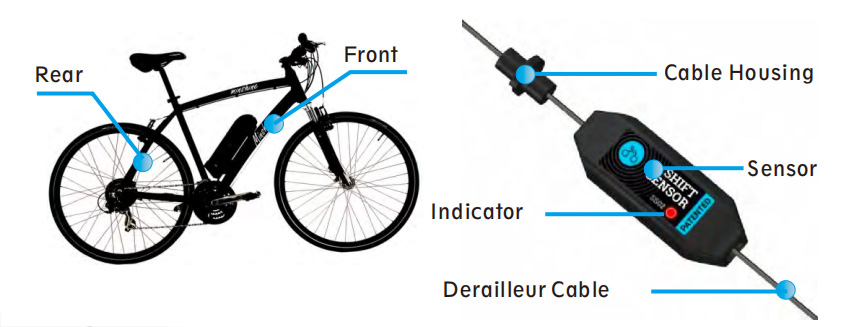

Installation Guide
Interface
Connector: SM3 or other
Red: VCC
Black: GND
White: Signal
Indicator Lights:
Standby: Green or blue light flashing
Operating: Red light on

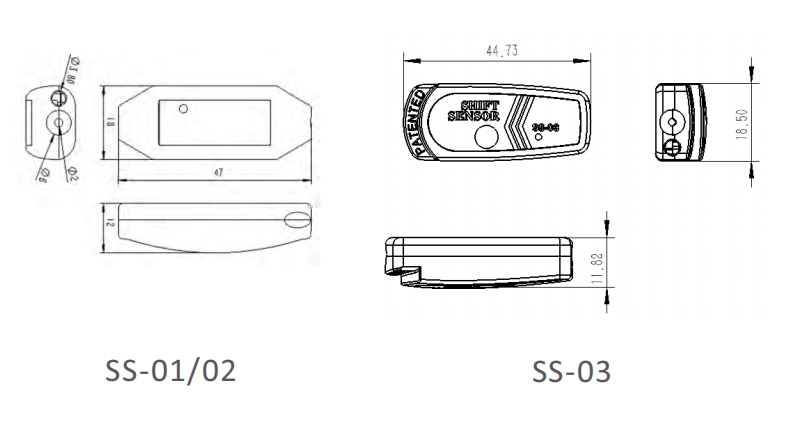

Appearance and size
Shift Sensor SS-02 – Reliable Gear Detection for Modern Vehicles and Industrial Systems
When I first started working with gear detection systems, I noticed one common problem: many machines don’t fail because of big mechanical issues, but because of small signal errors. A shift sensor looks simple, but it plays a very important role in how smoothly a vehicle or machine operates.
The Shift Sensor SS-02 is designed to solve exactly that problem. It delivers stable, accurate, and fast gear position signals for motorcycles, electric vehicles, ATVs, UTVs, agricultural machinery, and industrial automation systems.
At Suzhou Minshine Electronics Co., Ltd., we have been producing sensors, controllers, and displays since 2003. Over the years, we learned that real reliability is not about theory—it is about how a product performs after thousands of real working hours.
The Shift Sensor SS-02 is a gear position detection component that converts mechanical gear movement into an electrical signal. This signal is sent to the ECU or controller so the system knows exactly which gear is engaged.
It may sound simple, but this real-time feedback is essential for modern vehicles and machines. Without it, the system would rely on indirect estimation, which can cause delays or incorrect readings.
Detect gear position in real time
Send stable electrical signals to control systems
Improve transmission accuracy
Support intelligent vehicle control systems
Reduce mechanical misjudgment in shifting
The working principle is based on position detection. When the gear mechanism changes, the internal sensing element moves or changes state. This movement is converted into an electrical signal.
That signal travels through the wiring harness and is received by the control unit. The ECU then processes the data and adjusts vehicle behavior accordingly.
Because the response happens in milliseconds, the driver or operator gets immediate feedback without delay.
| Component | Function | Benefit |
|---|---|---|
| Sensing Core | Detect gear movement | High accuracy |
| Signal Module | Convert mechanical motion | Stable output |
| Wiring System | Transmit signal | Reliable communication |
| Housing | Protect internal parts | Long service life |
Source: Internal Engineering Documentation – Suzhou Minshine Electronics Co., Ltd.
In real applications, a small delay or incorrect signal can affect the entire system. For example, in electric motorcycles or ATVs, incorrect gear data may lead to unstable acceleration or poor torque control.
That is why the SS-02 is designed with stability in mind. It helps the system make correct decisions in real time.
Smoother gear shifting experience
Better ECU response accuracy
Reduced transmission stress
Improved riding safety
More stable dashboard display
We designed the SS-02 based on real customer feedback from vehicle manufacturers and industrial equipment suppliers. The focus is not only performance, but also durability and compatibility.
Instant detection of gear changes ensures real-time feedback.
Stable signal output reduces incorrect gear readings.
Designed for motorcycles, ATVs, and rough industrial environments.
Works in both high heat and low temperature conditions.
Built with durable materials for extended operation.
| Feature | Shift Sensor SS-02 | Standard Sensor |
|---|---|---|
| Response Speed | Very Fast | Medium |
| Signal Stability | High Stability | Average |
| Vibration Resistance | Industrial Grade | Basic |
| Temperature Range | Wide | Limited |
| Customization | OEM Supported | Limited |
Source: Internal Product Comparison Report + Industry Sensor Benchmark Data
This sensor is widely used across transportation and industrial sectors. Its adaptability makes it suitable for many environments.
Electric bicycles
Electric motorcycles
Motorcycles
ATVs & UTVs
Agricultural machinery
Construction equipment
Industrial automation systems
Special vehicles
From my experience in Industrial Sensor production, consistency does not come from a single step—it comes from a controlled and repeatable process. For the Shift Sensor SS-02, every unit is manufactured under strict process control to ensure stable performance in real working environments.
We don’t treat production as just assembly. Each stage has a clear technical standard, and every operator is trained to follow the same procedure. This is the only way to make sure every sensor behaves the same way after installation.
Raw material inspection and selection
Injection molding for housing components
Internal sensor core assembly
Precision soldering and wiring connection
Signal calibration and alignment
Electrical performance testing
Vibration simulation testing
Temperature cycle testing
Final inspection and appearance check
Export packaging
Each Shift Sensor SS-02 must pass all test stages before it is approved for shipment. If even one parameter is unstable, the product is rechecked or rejected.
Different customers have different installation environments. A motorcycle manufacturer may need a compact housing, while an agricultural machine supplier may need longer cables or stronger waterproofing. That’s why we support flexible customization for the SS-02.
Connector type customization
Wire harness length adjustment
Output signal configuration
Mounting structure design
Waterproof level adjustment
OEM logo and branding
Custom packaging design
These options help customers integrate the SS-02 directly into their system without extra modification work, saving both time and cost.
Before any shipment leaves our factory, it goes through a multi-layer inspection system. This is not optional—it is a fixed requirement in our production system.
100% functional testing
Signal stability verification
Connector durability check
High-temperature performance test
Low-temperature performance test
Vibration resistance test
Visual defect inspection
Only products that pass all tests are allowed to move to packaging and shipping.
Packaging is often underestimated, but in reality it plays a huge role in product reliability during transportation. Even a high-quality sensor can be damaged if packaging is not designed correctly.
For the Shift Sensor SS-02, we use a multi-layer protection system to ensure safe delivery across long distances.
Anti-static protective bag
Shock-absorbing foam layer
Reinforced inner tray
Strong export carton box
This structure protects the sensor from vibration, humidity, and impact during international transport.
| Item | Specification |
|---|---|
| Production Lead Time | 7–15 Working Days |
| Shipping Methods | Express / Air Freight / Sea Freight / Rail |
| Payment Terms | T/T, Wire Transfer, Negotiable for Long-term Partners |
| Packaging Type | Anti-static + Foam + Export Carton |
| OEM Service | Available |
Source: Internal Logistics & Production Management Records – Suzhou Minshine Electronics Co., Ltd.
Since 2003, we have focused on building reliable industrial electronic components. Over the years, we’ve learned that customers don’t just need a product—they need stable supply, predictable quality, and responsive communication.
That is why we continuously improve both our production system and engineering support.
Over 20 years of manufacturing experience
Strong OEM & ODM capability
Stable production capacity
Strict quality control system
Fast technical response
Export experience in global markets
Reliable delivery schedules
It is widely used in motorcycles, electric vehicles, ATVs, UTVs, agricultural machines, construction equipment, and industrial systems.
Yes, we offer customization for connectors, cable length, mounting design, and output signal types.
Standard models take 7–15 working days depending on order quantity.
Yes, waterproof levels can be customized based on application requirements.
Each unit undergoes electrical, vibration, temperature, and functional testing.
We support express delivery, air freight, sea freight, and railway transport.
Yes, we support OEM logo printing and packaging customization.
You can send us your technical requirements or drawings, and we will provide a full solution with pricing and lead time.
The Shift Sensor SS-02 is more than just a gear detection component. It is part of the communication bridge between mechanical movement and electronic control systems. When the signal is stable, the entire system becomes smoother, safer, and more efficient.
From design and production to testing and delivery, every step is focused on one goal: making sure the sensor works reliably in real-world conditions, not just in theory.
At Suzhou Minshine Electronics Co., Ltd., we continue to refine our products based on real application feedback from global customers. Whether for motorcycles or industrial machinery, the SS-02 is designed to deliver consistent performance where it matters most.
